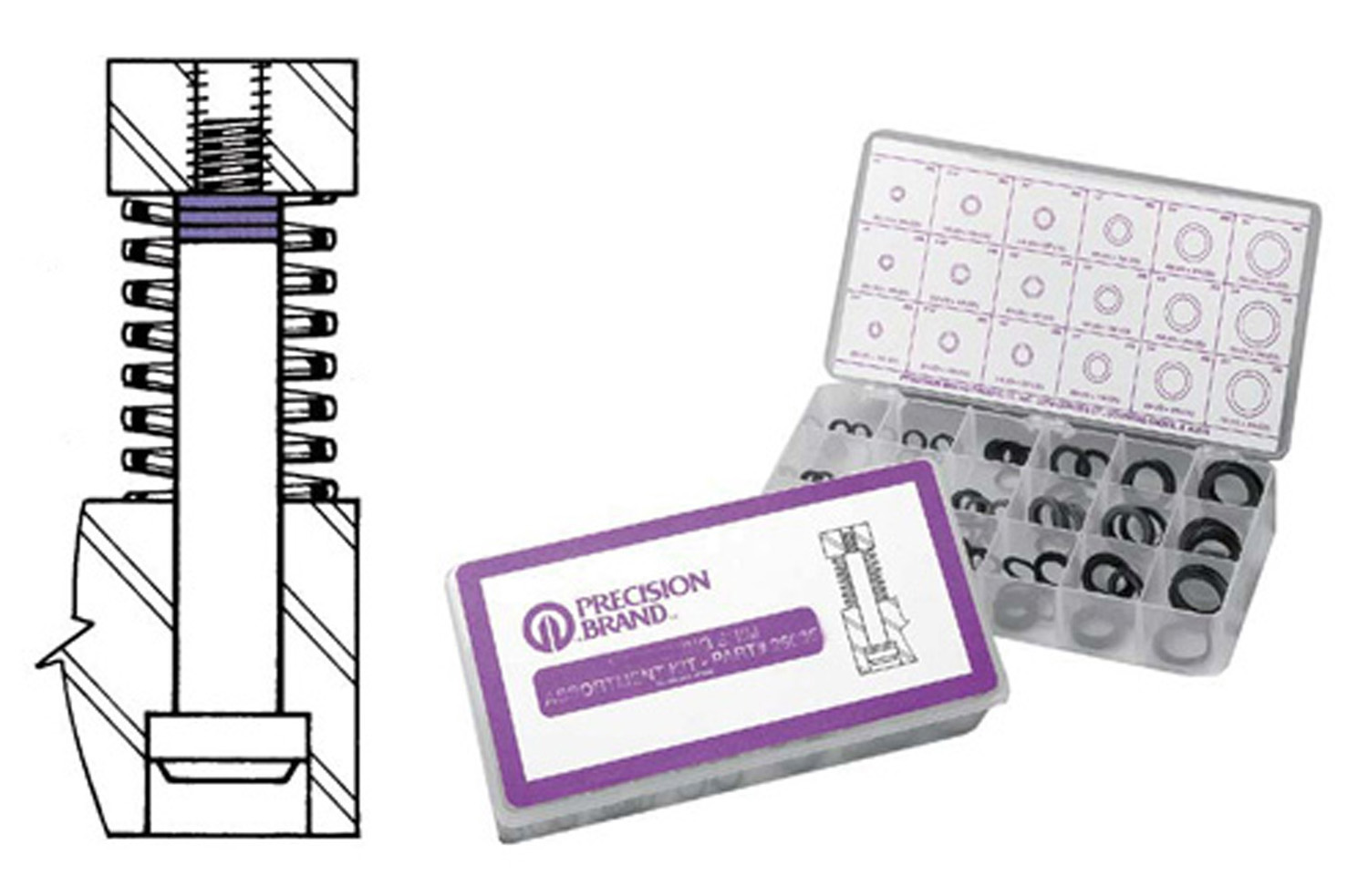

Lengthening Shims fit over the stripper screw threads and under the shoulder which, in effect, lengthens the stripper screw length. contains 3 thicknesses: 0.005″ from 1095 blue tempered spring steel and 0.015″ and 0.032″ from 1075 tempered spring steel. Fits six different shoulder screw sizes from 1/4″ to 3/4″ diameter. Precision Brand® 270 Piece Lengthening Shim contains 15 each of the following sizes: 0.171″ I.D x 0.248″ O.D. in 0.005″ and 0.015″; 0.187″ I.D x 0.248″ O.D. in 0.032″; 0.234″ I.D. x 0.308″ O.D. in 0.005″, 0.015″, and 0.032″; 0.289″ I.D. x 0.371″ O.D. in 0.005″ and 0.015″; 0.296″ I.D. x 0.371″ O.D. in 0.032″; 0.352″ I.D. x 0.496″ O.D. in 0.005″, 0.015″, and 0.032″; 0.473″ I.D. x 0.621″ O.D. in 0.005″, 0.015″, and 0.032″; and 0.598″ I.D. x 0.746″ O.D. in 0.005″, 0.015″, and 0.032″.
270 Piece Shoulder Screw (Stripper Bolt) Lengthening Shim Asst
UPC Code: 26005
PBP Code: 26005
Product Specs
| Packaging Weight: | 0.43 |
|---|---|
| UOM: | AST |
| Pieces per Package: | 270 |
| Thickness: | 0.005", 0.015", & 0.032" |
| Material: | Spring Steel |
| MSDS ID: | BLUE TEMPER SHIM_FEELER GAGE_L-S SHIMS 121913 |
