Die Button Shims

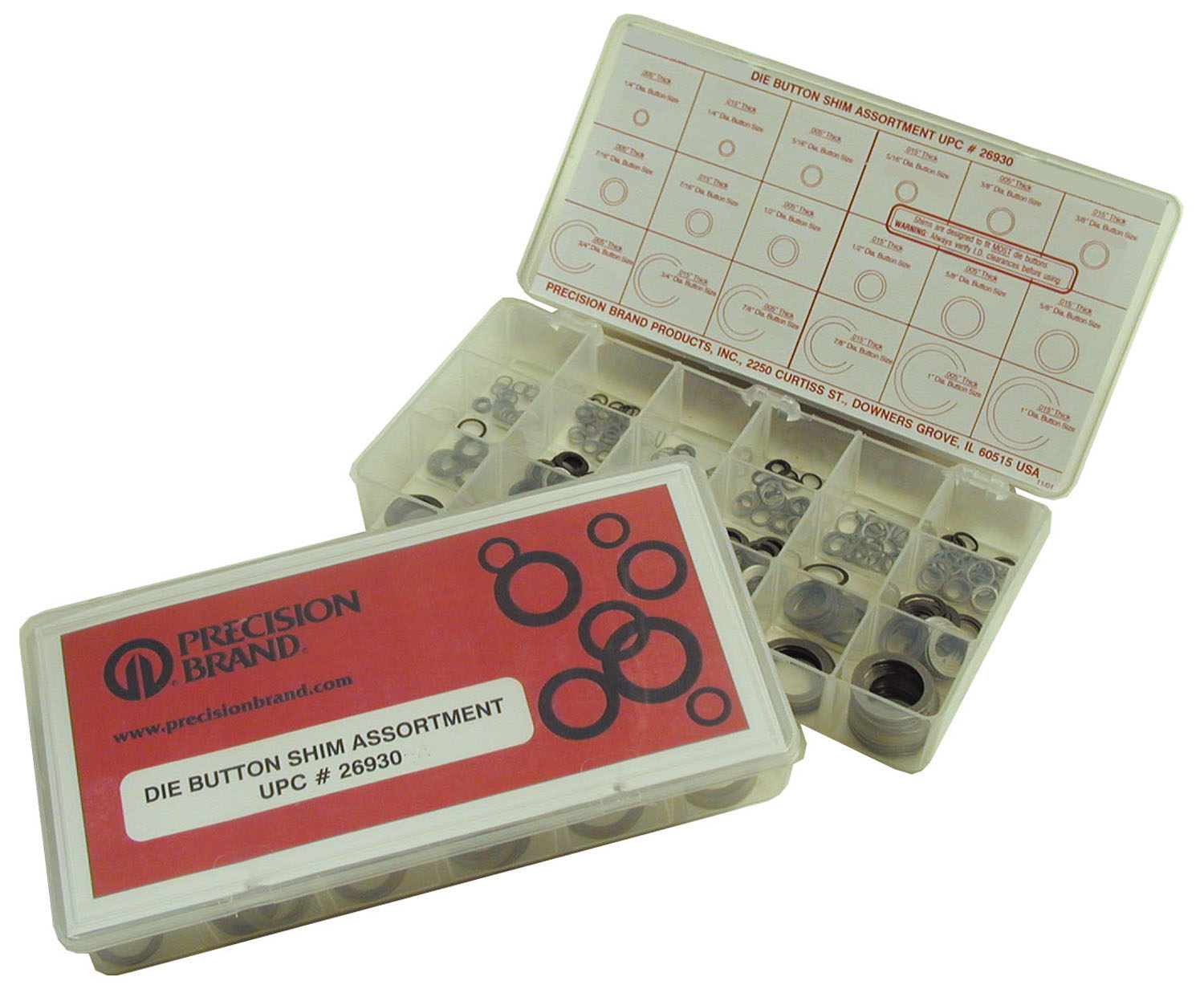

450 Piece Die Button Shim Asst

Die button shims

Die Button Shims quickly adjust the height of sharpened die buttons. contains 3 thicknesses: 0.005″ from 1095 blue tempered spring steel and 0.015″ and 0.032″ from 1075 tempered spring steel. Fits nine different die button sizes from 1/4″ to 1″. Easily extends the “life” of a die button and saves time over hand punching custom shims. Large I.D. accommodates multiple size die openings and reduces the risk of “slug stacking”. Precision Brand® 450 Piece Die Button contains 25 each of the following sizes in two thicknesses (0.005″ and 0.015″): 0.17″ I.D. x 0.249″ O.D.; 0.23″ I.D. x 0.3115″ O.D; 0.285″ I.D. x 0.374″ O.D.; 0.31″ I.D. x 0.4365″ O.D.; 0.35″ I.D. x 0.499″ O.D.; 0.47″ I.D. x 0.624″ O.D.; 0.595″ I.D. x 0.749″ O.D.; 0.625″ I.D. x 0.874″ O.D.; and 0.75″ I.D. x 0.999″ O.D.

View CERT’s Sheet

UPC Code: 26930
PBP Code: 26930

Die button shim specs

Product Specs
Packaging Weight: 0.462
Pieces per Package: 450
Thickness: 0.005" & 0.015"
Material: Spring Steel
